Electric Dryer ECO 10E

ECO SOLAR LLC – Shtip

Electric Dryer ECO 10E

Designed for drying fruits, vegetables, mushrooms, and pasta

The ECO 10E model is our large professional dryer offering a total tray area of approximately 10 m² (precisely 9.6 m²). This model has a capacity of about 135 kg (calculated for raw Stanley plums) and comes equipped with an impressive 25 INOX (stainless steel) trays for bulk drying.

⚙️ Technical Specifications of ECO 10E

Feature	Specification
Dryer Dimensions (L×W×H)	0.9 m × 1.25 m × 2.1 m
Approximate Weight	185 kg
Fans (internal)	Ø 175 (16 pieces)
Fan Power	320 W (16 × 20 W)
Maximum Air Flow	0 to 1000 m³/h
Additional Heating (Electric Heaters)	5.1 kW (6 × 0.850 kW) – Single-phase
Side Wall Insulation	Aluminum (inside), PVC panel 20 mm (outside)
Floor Insulation	Fibran 40 kg/m³, 20 mm

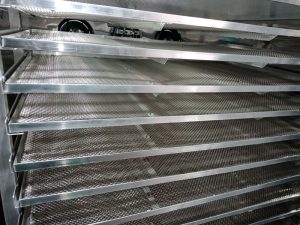

Drying Trays	25 pieces made of stainless steel (INOX 304)
Dimensions of One Tray	0.5 m × 0.8 m
Total Tray Area	9.6 m² (24 × 0.5 × 0.8)

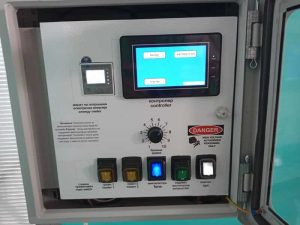

🎛️ Our dryers control:

To ensure a perfect final product, the dryer is equipped with an advanced system that enables precise control and monitoring of:

Temperature
Relative air humidity
Drying time
Air flow speed inside the dryer
Power consumption
Manual and Wi-Fi control for turning on and off
On-Line diagram for monitoring the relative humidity and temperature of the dryer (with a detailed history of hours, days, months, and years).

🏆 Quality, Craftsmanship, and Certificates

Certified Production:

ISO 9001:2015 certificate for the production of dryers.
The dryers possess “CE” and “EUR 1” certificates, guaranteeing European standards for quality and operational safety.

Built-in High-Quality Parts with a Long Lifespan:

Fan durability: The built-in Ø 175 fans have a proven operational lifespan of 20,000 hours.
Safety and hygiene: The inner walls of the dryer are made of premium INOX 304 (stainless steel). The occurrence of corrosion is impossible because we do not use steel sheets at all.

Improved Internal Ventilation:

Increased number of internal fans (as many as 16) for perfect drying.
PWM regulator for precise adjustment of the air circulation speed inside the dryer itself.

Energy Efficiency and Low Consumption:

Excellent thermal insulation enables significantly lower electricity consumption.
The larger dryer models have a built-in recuperator (heat exchanger) that transfers heat from the exhaust (hot and humid) air to the incoming (cold and dry) air.
Note: Hybrid versions of the dryers additionally preheat the air via a solar air heating system.

Maintenance and Spare Parts:

Electric heaters and fans are standard parts available in open retail. For all other specific spare parts, we are at your disposal with quick delivery via cargo.
