Electric dryer ECO 3E

Electric dryer ECO 3E

Designed for drying fruits, vegetables, mushrooms and pasta

The ECO 3E model is a compact and efficient drying solution with a total tray area of ​​approximately 3 m². It has a capacity of 40 to 50 kg (calculated for raw plums of the Stanley variety). It is equipped with 6 high-quality INOX trays, ideal for the food industry.

⚙️ Technical characteristics
Characteristics Specification
Dimensions (L×W×H) 1.05 m × 0.9 m × 0.62 m
Gross volume 0.9 m³
Approximate weight 50 kg
Fans (internal) F 175 (6 pieces)
Fan power 120 W (6 × 20 W)
Maximum air flow 0 to 1000 m³/h
Heating Electric heaters: 1.75 kW (2 × 0.875 kW) – Single-phase
Side insulation INOX (internal), Polycarbonate (external)
Drying trays 6 pieces of stainless steel (INOX 304)
Dimensions of one tray 0.6 m × 0.8 m
Total area of ​​trays ~ 3 m²
🎛️ Control system and automation

The dryer has an advanced system for automatic control of the drying process.

What does the automation control?

Temperature

Relative air humidity

Drying time (built-in timer)

Air flow rate inside the dryer (first air regulation via PWM)

Moist air outlet speed from the dryer (second air regulation)

Electricity consumption

Smart (Wi-Fi) options:

Wi-Fi control: Monitoring of electricity consumption with the possibility of remote switching on and off via mobile phone (available and manual at the request of the buyer).

Analytics: You receive data and detailed graphs on your Android phone for energy consumption at the hourly/daily/week/month/year level.

On-Line diagram: Monitoring of relative humidity and temperature in real time (option at the request of the buyer).

🏆 Quality, workmanship and certificates

Certified quality:

ISO 9001:2015 certificate for the production of dryers.

The products have a “CE” mark for safety at work, as well as a “EUR 1” certificate.

Built-in high-quality parts with a long service life:

Durability of the fans: The built-in F 175 fans have a tested service life of an incredible 20,000 working hours.

Food safety: The inner walls of the dryer, as well as all 6 trays, are made of the highest quality stainless steel – INOX 304. We do not use steel sheets, which guarantees that there is no corrosion.

Energy efficiency: Excellent thermal insulation allows for very low electricity consumption.

Improved internal ventilation:

Increased number of internal fans (total of 6) for perfectly even drying of products.

PWM regulation for precise control of the internal air flow and timely discharge of humid air.

Maintenance and spare parts:

Electric heaters and fans are standard components that can be found in any well-stocked retailer. For all other specific spare parts, we provide fast delivery by cargo directly to you.

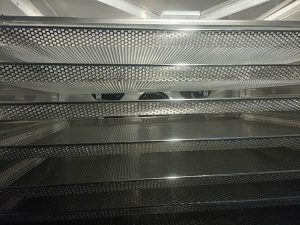

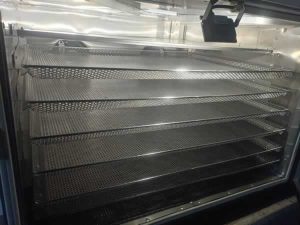

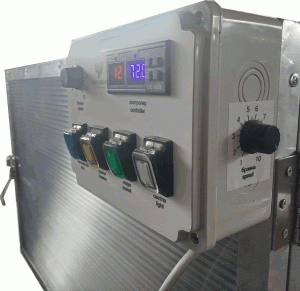

(Here on the website you can place the pictures in the following order: View of the dryer externally, Interior with 6 INOX 304 fans, View of the INOX trays, Pictures of the controller and finally Dryers ready for delivery).
