Electric dryer ECO 12 E

ECO SOLAR LLC – Shtip

Electric Dryer ECO 12 E

Designed for drying fruits, vegetables, mushrooms, and pasta

The ECO 12 E model is a high-capacity dryer with a total tray area of approximately 12 m². It has a processing capacity of about 150 kg (calculated for raw Stanley plums). It is equipped with 25 INOX (stainless steel) trays for continuous and efficient drying.

⚙️ Technical Specifications of ECO 12 E

Feature	Specification
Dryer Dimensions (L×W×H)	0.9 m × 1.25 m × 2.1 m
Approximate Weight	190 kg
Fans (internal)	Ø 175 (16 pieces)
Fan Power	320 W
Maximum Air Flow	0 to 1000 m³/h
Additional Heating	Electric Heaters: 5.1 kW (6 × 0.850 kW) – Single-phase
Floor Insulation	Fibran 40 kg/m³, 20 mm
Side Wall Insulation	Aluminum (inside), PVC panel 20 mm (outside)

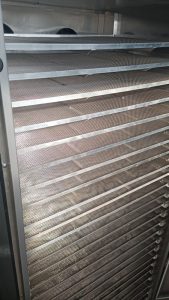

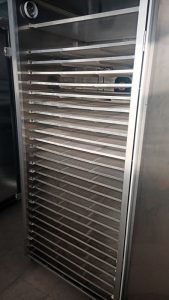

Drying Trays	25 pieces made of stainless steel (INOX 304)
Dimensions of One Tray	0.6 m × 0.8 m
Total Tray Area	12 m² (25 × 0.6 × 0.8)

⭐ Improved Features and Quality

Improved ventilation: Increased number of internal fans (a total of 16) for even and better drying of the products.

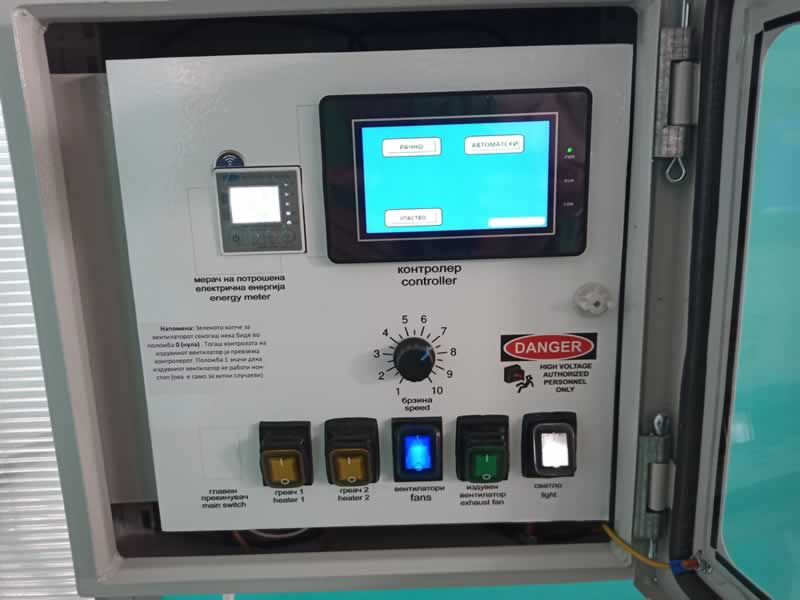

Precise control: Built-in PWM regulator for fine adjustment of the air circulation speed inside the dryer itself.
Durability: The Ø 175 fans have a tested and proven operational lifespan of 20,000 hours.
Safety and purity: The inner walls of the dryer are made of premium INOX 304 (stainless steel). The use of steel sheets is completely eliminated, so there is no possibility of corrosion occurring.
Energy efficiency: Excellent thermal insulation guarantees very low electricity consumption during the operating cycle.
Maintenance: Electric heaters and fans are standard components available in retail. For all other specific spare parts, delivery is made quickly via cargo.
