Hybrid dryer ECO 12 H

ECO SOLAR LLC – Shtip

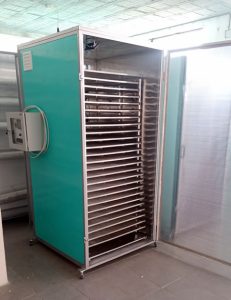

☀️ Hybrid Dryer ECO 12 H

Designed for efficient drying of fruits, vegetables, mushrooms, and pasta

The ECO 12 H model is an advanced hybrid dryer with a total tray area of approximately 12 m². It has an excellent processing capacity of 150 to 165 kg (calculated for raw Stanley plums). It is equipped with 25 INOX (stainless steel) trays for continuous production.

🌿 What does a hybrid dryer mean?

This is a system that primarily receives thermal energy from solar air collectors (free solar preheating of the incoming air). Then, if necessary, the air inside the dryer is additionally heated with electrical energy (which can come from a photovoltaic system or directly from the city grid).

⚙️ Technical Specifications of ECO 12 H

Feature	Specification
Dryer Dimensions (L×W×H)	0.9 m × 1.25 m × 2.1 m
Approximate Weight	190 kg
Fans (internal)	Ø 175 (16 pieces)
Fan Power	320 W
Maximum Air Flow	0 to 1000 m³/h
Additional Heating	Electric Heaters: 5.1 kW (6 × 0.850 kW) – Single-phase
Floor Insulation	Fibran 40 kg/m³, 20 mm
Side Wall Insulation	Aluminum (inside), PVC panel 20 mm (outside)

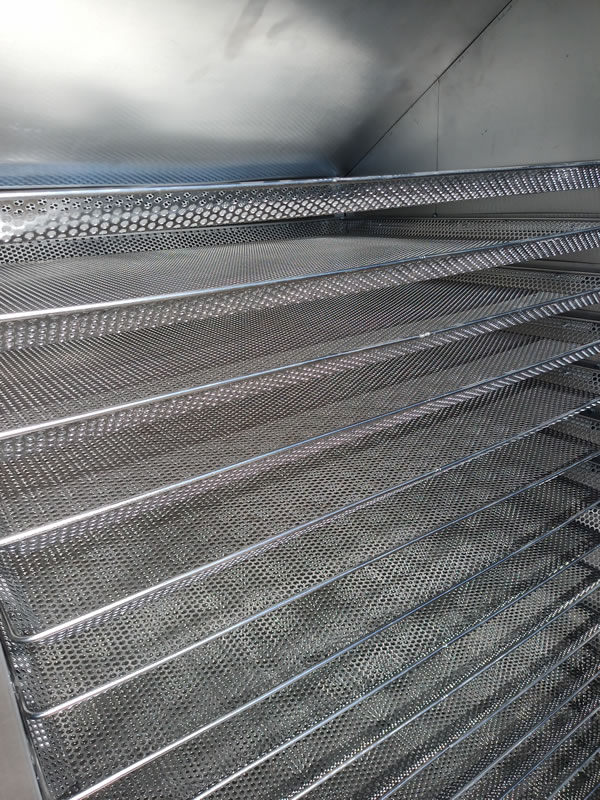

Drying Trays	25 pieces made of stainless steel (INOX 304)
Dimensions of One Tray	0.6 m × 0.8 m
Total Tray Area	12 m² (25 × 0.6 × 0.8)

☀️ Solar Air Heating System for Preheating

For maximum energy efficiency, this dryer uses a system of solar collectors that preheat the air before it enters the chamber.

Minimum system: The set starts with 2 solar air collectors (2 m² each), providing a total preheating area of 4 m².
Optimal system: For best results, an optimal quantity of 5 series-connected collectors is recommended (5 × 2 m² = 10 m² total area).
Power: The installed power of one 2 m² solar air collector is 1.4 kW.
Total power: The installed power of the optimal 5-collector system is an excellent 7 kW (1.4 kW × 5).

⭐ Improved Features and Quality

Improved ventilation: Increased number of internal fans (a total of 16) for perfectly even drying.

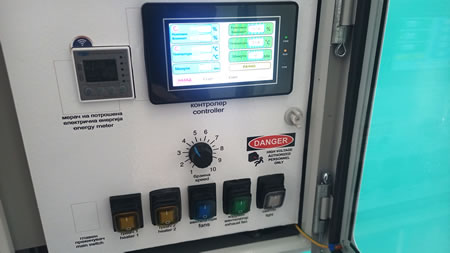

Precise control: Built-in PWM regulator for fine adjustment of the air circulation speed inside the dryer itself.
Durability: The Ø 175 fans are designed for intensive operation with a lifespan of 20,000 hours.
Safety and purity: The inner walls of the dryer are made of premium INOX 304 (stainless steel). The use of steel sheets is completely eliminated, which means there is absolutely no occurrence of corrosion.
Energy efficiency: Excellent thermal insulation combined with solar preheating guarantees drastically reduced electricity consumption.
Easy maintenance: Electric heaters and fans are standard parts available in open retail. For all other specific spare parts, we provide fast delivery via cargo.
